M Series

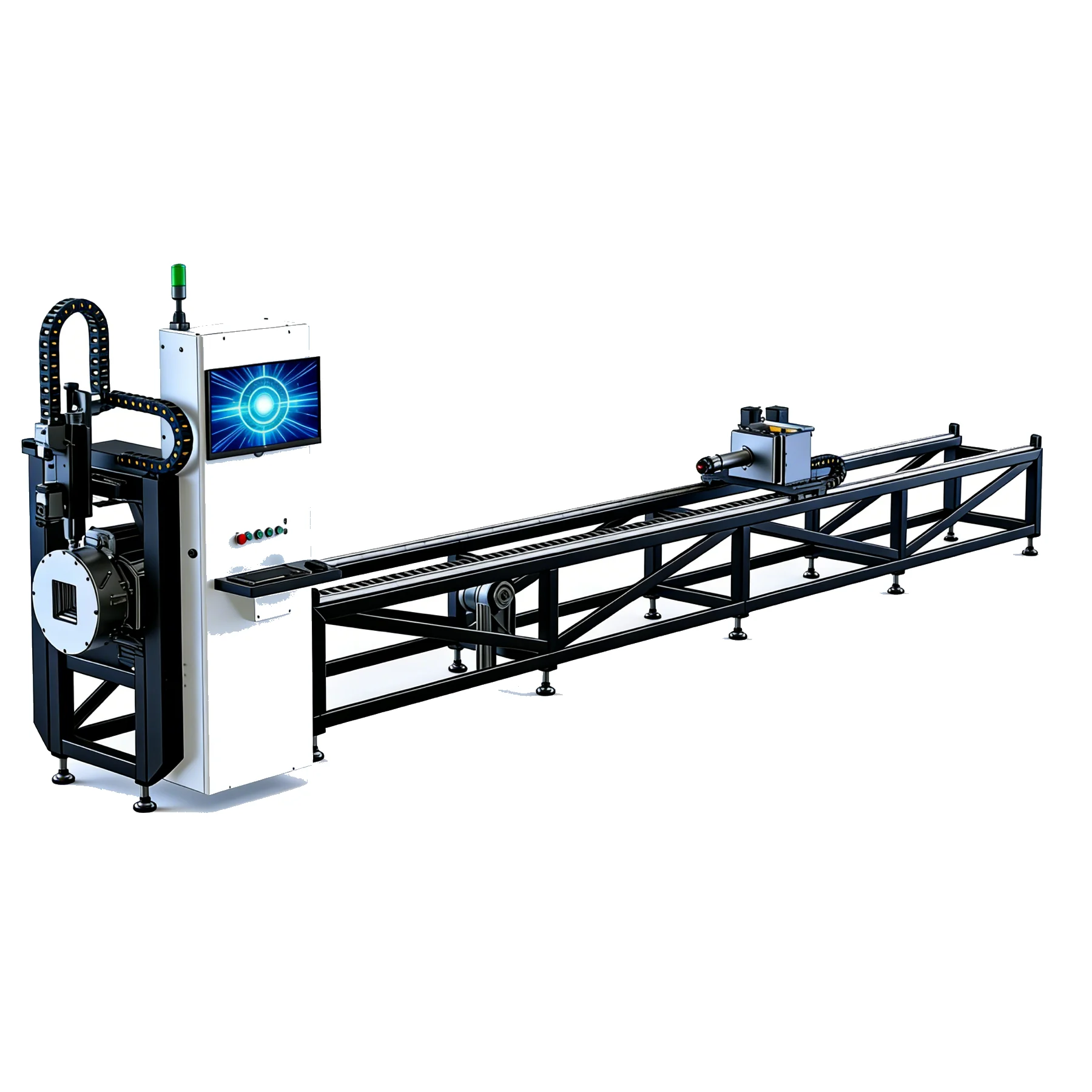

M Series Compact Fiber Laser Tube Cutter
M Series is a compact supporting fiber laser tube cutter for stable round tube cutting, shop production, on-site processing and light industrial applications.
M12/M12YΦ8-Φ850.2-3mmThree-phase 380V
Advantages
Compact, stable and fast to deploy
- Front chuck upgrade:Full-stroke pneumatic automatic chuck clamps automatically and reduces manual adjustment.
- Wider clamping range:Supports round tubes, square tubes, channel steel, angle steel and more profiles.
- System upgrade:Equipped with an intelligent control system for clear operation and stable batch processing.
- Multi-material compatibility:Cuts stainless steel, steel tubes and aluminum tubes.
M12 Operating Specifications
M12 operating parameters
| Tube diameter range | Φ8-Φ85 |
|---|---|
| Cut workpiece length | 1mm-6000mm |
| Cutting material thickness | 0.2-3mm |
| Maximum cutting linear speed | ≤25m/min, depending on material thickness and tube diameter |
| X-axis travel | 1200mm |
| Z-axis adjustment travel | 130mm |
| A-axis adjustment range | 360° |
| Cutting accuracy | Finished part length ≤500mm: ≤±0.1mm; 500mm≤finished part length≤1200mm: ≤±0.2mm |
| Machine positioning accuracy | ±0.1mm |
| Idle travel speed | ≤60m/min |
| Maximum acceleration | 2.0G |
| Machine bed weight | 2.5 tons |
| Power requirement | Three-phase 380V 50Hz |
M12Y Technical Specifications
M12Y Technical Specifications
| Laser power | 1500-3000W |
|---|---|
| Processing range | 8-120 |
| Single tube weight | ≤70KG |
| Tail length | <85MM |
| Overall dimensions L×W×H | 6.98×1.3×2M |
